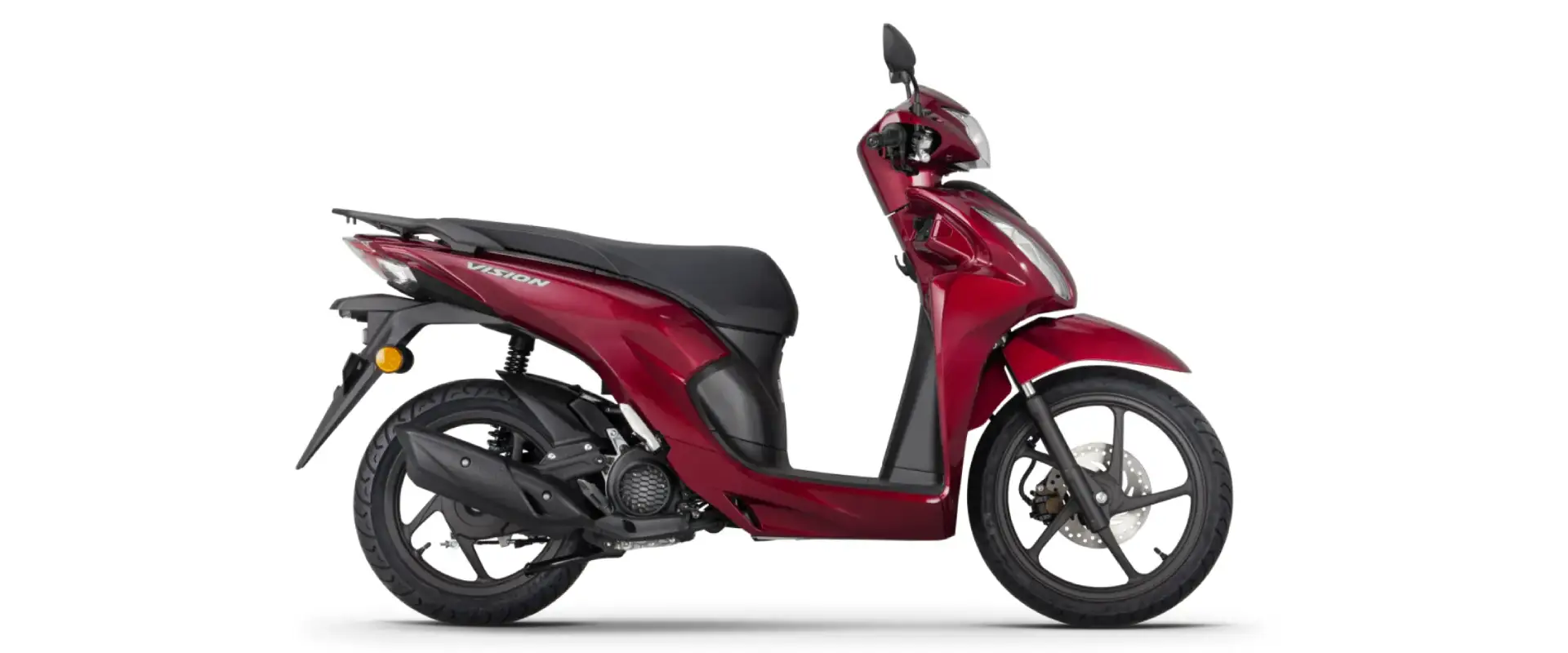

New Honda Vision 110

Enjoy the city

Share this page

Simple, straightforward and affordable transport. Sometimes that is all a rider needs a scooter to be – good value in both purchase and ownership, convenient day-to-day and ultra-reliable in the long term. And those are the boxes that the Honda Vision has firmly ticked since its introduction to Europe in 2011.

Its robust, air-cooled simplicity holds strong appeal for both younger and older riders, as does its practicality and ease of use. And while it is affordable, the Vision has never made sacrifices on quality – it’s been built to last. For 2017 there is a brand new Vision. Assembled in Italy, the new machine stays close to its clear-cut first principles but is now more economical, makes more torque and features an updated chassis, styling and rider ergonomics.

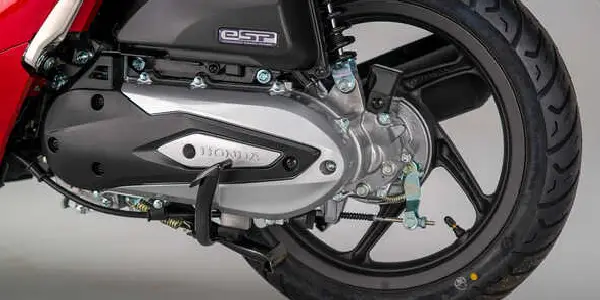

The Vision’s new 108cc fuel-injected 2V OHC eSP engine is a highly durable and lightweight unit. Compared to the outgoing engine, peak torque is up from 8.7Nm to 9Nm with peak power of 6.5kw @ at 7,500rpm. The engine also meets the stringent new EURO4 regulations, under which the allowable limits for exhaust tailpipe pollutants, such as carbon monoxide, hydrocarbons and nitrous oxide, are half of those for EURO3. Fuel efficiency is unchanged at 52km/litre.

A compact combustion chamber matches burn velocity and cooling performance. Bore and stroke is set at 50 x 55.1mm, with compression ratio of 9.5:1. The air intake port is ultra-smooth, assisting gas flow, and optimised ignition timing improves ‘knocking’ resistance.

Low-friction technologies are employed internally; the cylinder sleeve uses minute splines on its outer surface to reduce oil consumption and improve cooling and the cylinder is offset, further reducing friction.

A shell-type needle bearing is used for the rocker arm shaft while smaller, lighter rollers work in conjunction with the cam profile and valve spring load. Rolling resistance within the transmission is reduced by the use of three main bearings, all designed to deal with the loads they each individually receive.

A key fuel-saving technology incorporated into the Vision is Idling Stop. It’s operated via a switch on the right handlebar and when enabled automatically stops the engine running after three seconds at idle, and re-starts it instantly when the throttle grip is twisted. It’s seamless in use, thanks to a swing-back system that returns the crank to its position before air intake, and a decompression mechanism that negates cranking resistance due to compression. The ACG starter also generates electricity, doing away with a conventional system’s motor and gears.

It’s seamless in use, thanks to a swing-back system that returns the crank to its position before air intake, and a decompression mechanism that negates cranking resistance due to compression. The ACG starter also generates electricity, doing away with a conventional system’s motor and gears.

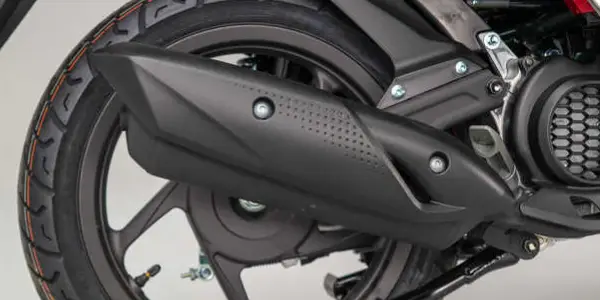

The Vision is built to be nimble and easy to ride. Its tubular steel underbone frame provides rigidity and up front a new 35mm diameter fork (an increase of 4mm) improves every aspect of handling and ride comfort. Rake and trail is set at 27°/70mm with a wheelbase of 1,290mm. Kerb weight is 102kg with a maximum carrying capacity of 150kg.

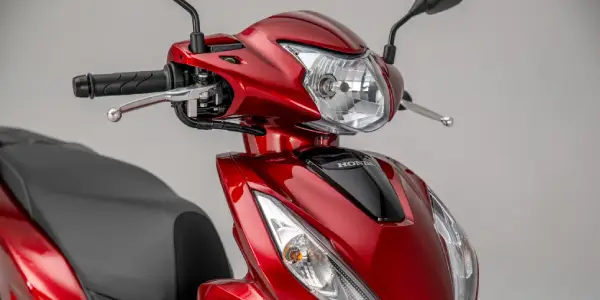

Fresh styling plays on the Vision’s unfussy strengths and increases appeal: a mixture of smoothed lines for the body with sharper angles for the headlight area, and revised indicators bring it right up to date. A practical rear ‘hugger’ mudguard has also been added.

With a 10mm narrower width (at 380mm) and narrower mirrors the Vision is even easier to navigate through busy city streets. The seat height of 770mm is 25mm lower and there’s much more leg room for the rider on the flat floor, with an increased floor length of 15mm in the centre, to 170mm and an extra 20mm either side at 370mm.

Pillion comfort has not been forgotten. The pegs have been moved 25mm forward while the grab rail features a revised shape. A side stand aids stop-and-go convenience.

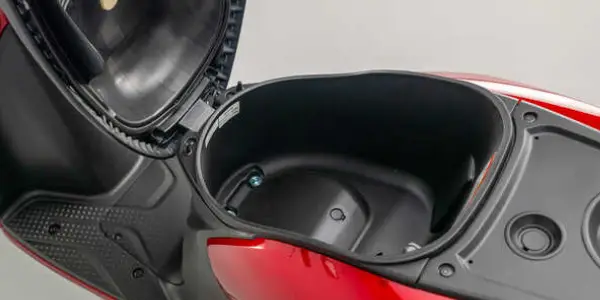

The volume of the underseat compartment has been maintained at 18L ­– it’ll take a full-face helmet – but the seat now opens via a combination switch mounted below the handlebars. Two additional open storage areas are sited ahead of the rider’s knees and helmet holders on either side of the underseat area allow two helmets to be secured.

Both cast aluminium wheels are 16-inch in diameter and roll 80/90-16 and 90/9014 front/rear tyres. The brake system has been simplified; a single-piston caliper now works the front 220mm disc and links to the rear 130mm drum via single-circuit CBS.


Colour Options


Pearl Cool White

Pearl Cool White


Pearl Nightstar Black

Pearl Nightstar Black


Matt Carbonium Grey Metallic

Matt Carbonium Grey Metallic


Pearl Splendor Red

Pearl Splendor Red


Moondust Silver Metallic

Moondust Silver Metallic



Representative example

Vision 110 18YM - Terms & Conditions
TypeHP
36 Payments of£65.00
APR6.9%
OTR£2,399.00
Deposit£275.54
Honda Deposit contribution£0.00
Amount of Credit£2,123.46
Total Amount Payable£2,625.54
Option to Purchase Fee£10.00
Interest Rate pa6.42%

View all Finance Examples
VISION 110 17YM - Terms & Conditions
TypeVPL
36 Payments of£65.00
APR6.9%
OTR£2,399.00
Deposit£284.09
Honda Deposit contribution£0.00
Amount of Credit£2,114.91
Total Amount Payable£2,624.09
Interest Rate pa6.69%
Vision 110 18YM - Terms & Conditions
TypeVPL
36 Payments of£65.00
APR6.9%
OTR£2,399.00
Deposit£284.08
Honda Deposit contribution£0.00
Amount of Credit£2,114.92
Total Amount Payable£2,624.08
Interest Rate pa6.69%
VISION 110 17YM - Terms & Conditions
TypeHP
36 Payments of£65.00
APR6.9%
OTR£2,399.00
Deposit£275.54
Honda Deposit contribution£0.00
Amount of Credit£2,123.46
Total Amount Payable£2,625.54
Option to Purchase Fee£10.00
Interest Rate pa6.42%


Specifications

Bore × Stroke (mm)50mm x 55.1mm
CarburationPGM-FI electronic fuel injection
Compression Ratio9.5
C02 Emissions42 g/km
Engine Displacement (cc)108cc
Engine Type (cm³)Air-cooled 4-stroke OHC single
Max. Power Output6.5kw / 7,500rpm
Max. Torque9.0Nm / 5,500rpm
Oil Capacity (Litres)0.8
StarterElectric
ClutchAutomatic; centrifugal
Final DriveV-Belt
Transmission TypeCVT
Battery Capacity (VAh)GTZ6V 5.3Ah MF
Caster Angle27°
Dimensions (L×W×H) (mm)1,925mm X 686mm X 1,115mm
Frame typeTubular Steel Underbone
Fuel Tank Capacity (Litres)5.2L
Fuel Consumption147mpg
Ground Clearance (mm)160mm
Kerb Weight (kg)102kg
Seat Height (mm)770mm
Trail (mm)70mm
Wheelbase (mm)1290mm
Suspension FrontTelescopic 31
Suspension RearDual-damper unit swing arm
Tyre Size Front80/90-16 inch
Tyre Size Rear90/90-14 inch
Wheels Front16M/C X MT1.85
Wheels Rear14M/C X MT1.85
HeadlightsBulb
