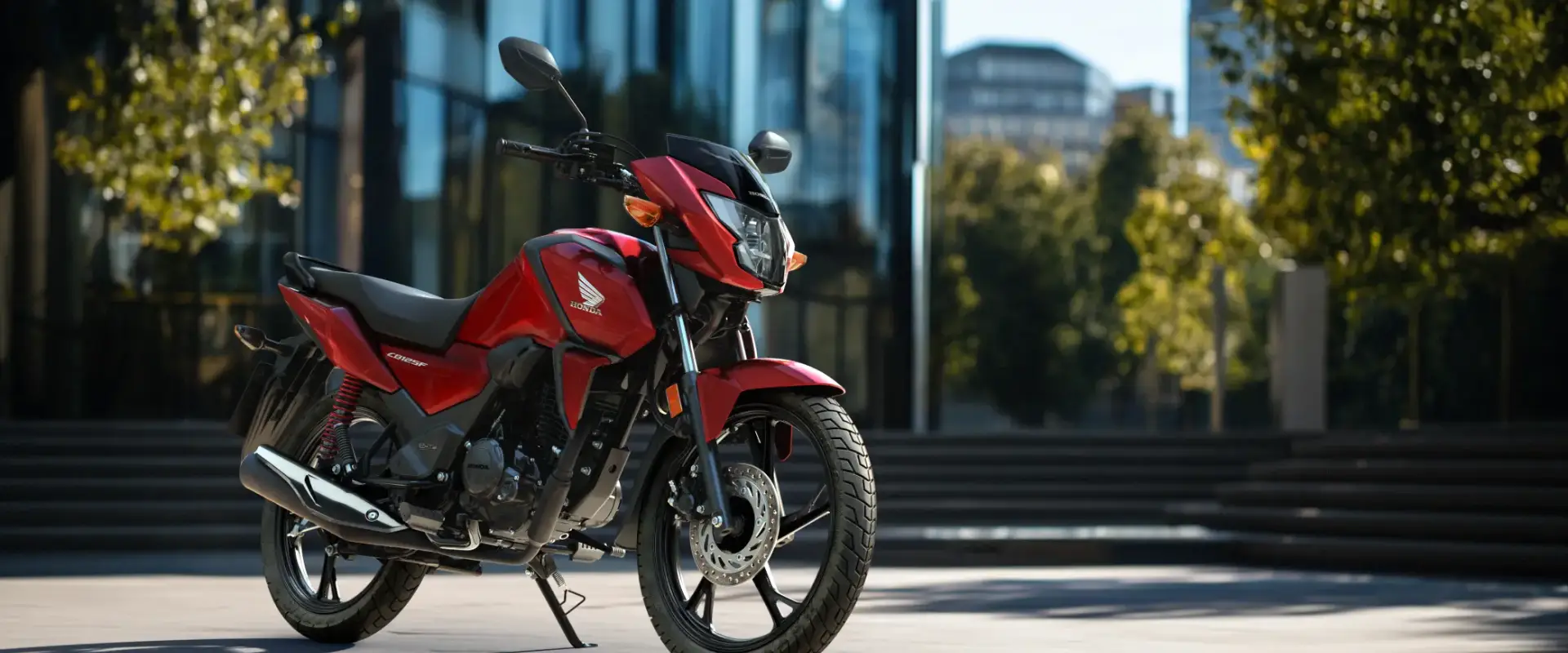

New Honda CB125F

Welcome to Freedom

Share this page

An entry-level 125cc motorcycle has to be a multi-faceted machine. To some it represents the most economical way of getting from A to B, both in terms of initial affordability and running costs. To these riders it must be durable, easy to live with and economical: simple, trouble-free transport at its most fundamental.

But to many new riders a 125 is the start of their motorcycling adventure, their first ‘real’ bike. So it must deliver all of the above and everything else that a motorcycle should - the excitement, freedom and instinctive pleasure that two wheels bring to everyday life. Yet it also has to be easy for a novice to manage as he/she learns, with build quality that instills tangible pride of ownership and style that adds street credibility.

The new CB125F was styled with a strong family resemblance to the twin-cylinder CB500F and four-cylinder CB650F. An injection of aggressive ‘streetfighter’ attitude matched an upright riding position and wide handlebars, giving excellent control.

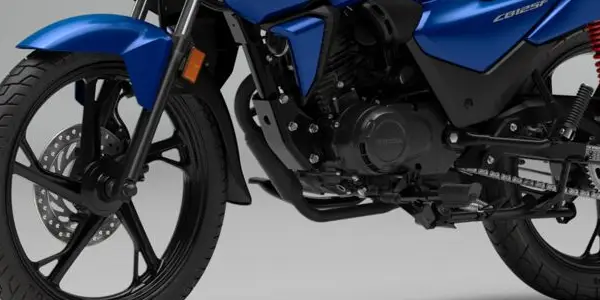

The CB125F’s 124.7cc, air-cooled fuel-injected OHC 2-valve engine is tough, proven and efficient. Bore and stroke is set at 52.4 x 57.8mm, with compression ratio of 9.2:1. The cylinder head has been revised for 2015 and the addition of a balancer shaft neutralises vibration. The 5-speed gearbox provides a wide spread of useful ratios. Peak power of 7.8kW arrives at 7,750rpm, with maximum torque of 10.2Nm delivered at 6,250rpm.

But numbers tell only half of the story; focus of the engineering team was around the powerplant’s real-world user friendliness – in other words, strong low and mid-range torque, with excellent throttle response for smart acceleration from a standstill in urban riding. The engine’s pick up and throttle response is noticeably stronger.

Fuel economy of 51.3km/l (WMTC mode) provides a range of over 600km between fill-ups from the 13-litre tank and the PGM-FI employs the latest solenoid, making for much easier starting in extreme cold or adverse weather. For 2017, the engine also complies with the stringent new EURO4 regulations, under which the allowable limits for exhaust tailpipe pollutants, such as carbon monoxide, hydrocarbons and nitrous oxide, are approximately half of those for EURO3.

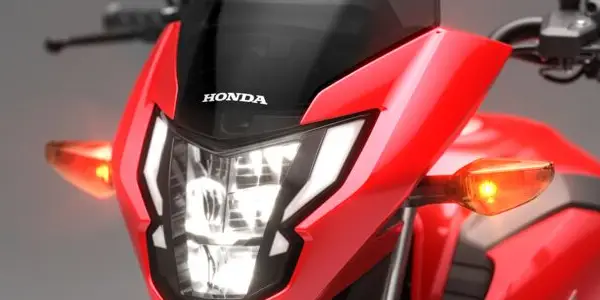

With strong desire for naked motorcycles of all capacities throughout Europe, the CB125F channels its larger siblings’ street style with a broad-shouldered and muscular ‘mass forward’ stance. Angular side shrouds extend forward from the fuel tank and the contoured side cowls narrow neatly, minimizing the height difference between rider and pillion. The compact nose cowl surrounding the multi reflector headlight and dash display completes the aggressive new look. Clear indicator lenses and orange bulbs add a stylish finishing touch.

The engine, exhaust downpipe and muffler, fork lowers and wheels are blacked out, underlining the crisp lines and bright paintwork. Subtle red detailing is to be found on the shock springs and Honda logo on the engine crankcases. It's a bike built to endure the rigours of European weather, whilst its new style, build quality and finish add greatly to owner satisfaction.

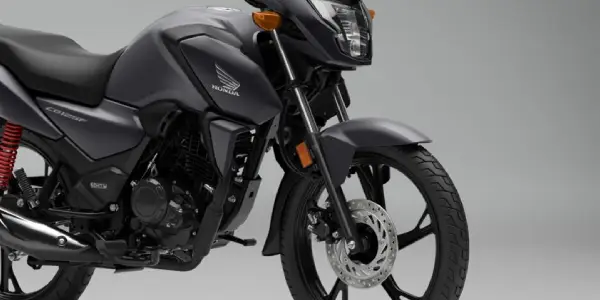

The integrated steel frame suspends the engine from a sturdy central spine and features geometry that provides the best balance between ride comfort and straight line stability, with a focus toward light steering input and sporty feel at all lean angles. Rake and trail are set at 26° and 97mm with wheelbase of 1295mm. Kerb weight is just 128kg.

Dual rear shocks offer 5-step spring preload adjustment and complement the 120mm telescopic fork’s compliance and ride quality; stylish six-spoke 18-inch aluminium front and rear wheels increase stability and ride quality over rough city streets. Tyres are sized 80/100 front and 90/90 rear. A 240mm front disc is worked by a double piston caliper, with back up from the 130mm rear drum.


Colour Options


Pearl Sunbeam White

Pearl Sunbeam White


Candy Blazing Red

Candy Blazing Red


Pearl Twinkle Yellow

Pearl Twinkle Yellow


Onyx Blue Metallic

Onyx Blue Metallic



Representative example

CB125F 18YM - Terms & Conditions
TypePCP
36 Payments of£49.00
APR6.9%
OTR£2,829.00
Deposit£388.76
HUK Contribution£0.00
Amount of Credit£2,440.24
Final Payment£1,028.23
Final Payment inc Option Fee£1,038.23
Total Amount Payable£3,190.99
Option to Purchase Fee£10.00
Annual Contracted Mileage4,000
Excess Mileage Charge5p
Interest Rate pa6.51%

View all Finance Examples
CB125F 17YM - Terms & Conditions
TypePCP
36 Payments of£49.00
APR6.9%
OTR£2,829.00
Deposit£388.76
HUK Contribution£0.00
Amount of Credit£2,440.24
Final Payment£1,028.23
Final Payment inc Option Fee£1,038.23
Total Amount Payable£3,190.99
Option to Purchase Fee£10.00
Annual Contracted Mileage4,000
Excess Mileage Charge5p
Interest Rate pa6.51%
CB125F 17YM - Terms & Conditions
TypeVPL
36 Payments of£75.00
APR6.9%
OTR£2,829.00
Deposit£388.76
Honda Deposit contribution£0.00
Amount of Credit£2,440.24
Total Amount Payable£3,088.76
Interest Rate pa6.69%
CB125F 18YM - Terms & Conditions
TypeVPL
36 Payments of£75.00
APR6.9%
OTR£2,829.00
Deposit£388.76
Honda Deposit contribution£0.00
Amount of Credit£2,440.24
Total Amount Payable£3,088.76
Interest Rate pa6.69%
CB125F 17YM - Terms & Conditions
TypeHP
36 Payments of£75.00
APR6.9%
OTR£2,829.00
Deposit£382.28
Honda Deposit contribution£0.00
Amount of Credit£2,446.72
Total Amount Payable£3,092.28
Option to Purchase Fee£10.00
Interest Rate pa6.51%
CB125F 18YM - Terms & Conditions
TypeHP
36 Payments of£75.00
APR6.9%
OTR£2,829.00
Deposit£382.28
Honda Deposit contribution£0.00
Amount of Credit£2,446.72
Total Amount Payable£3,092.28
Option to Purchase Fee£10.00
Interest Rate pa6.51%


Specifications

Bore × Stroke (mm)52.4 x 57.8
CarburationPGM-FI electronic fuel injection
Compression Ratio9.2:1
C02 Emissions45 g/km
Engine Displacement (cc)124.7cc
Engine Type (cm³)Air-cooled 4-stroke 2-valve OHC single with balancer shaft
Max. Power Output7.8kW @ 7,750rpm
Max. Torque10.2Nm @ 6,250rpm
Oil Capacity (Litres)1.0
StarterElectric
ClutchWet, multiplate with coil springs
Final DriveStandard chain
Gearbox5 speed
Battery Capacity (VAh)12V/6AH
Caster Angle26°
Dimensions (L×W×H) (mm)2,035 x 765 x 1,080
Frame typeDiamond; steel
Fuel Tank Capacity (Litres)13 litres
Fuel Consumption151.1 mpg
Ground Clearance (mm)160
Kerb Weight (kg)128kg (Front 58kg; Rear 70kg)
Seat Height (mm)775
Trail (mm)97
Wheelbase (mm)1295
Brakes Front240mm disc with double piston caliper
Brakes Rear130mm drum
Suspension Front120mm telescopic fork (31mm diameter)
Suspension RearDual rear shocks with 5-step spring preload adjustment
Tyre Size Front80/100 – 18M/C 47P
Tyre Size Rear90/90 – 18M/C 51P
Wheels Front18” six spoke cast aluminium
Wheels Rear18” six spoke cast aluminium
Headlights12V 35W (low), 35W (high)
InstrumentsSpeedometer, milometer, fuel gauge, rpm counter, gear position indicator
Tail Light12V 21W (stop), 5W (tail)

CB125F brochure
